Compatible Motorcycles
According to the manufacturer's parts catalogue, part number 59036081100 is used on 31 models, across 86 model years in total. The exact measure of fitment is the part number: if the number on the part on your motorcycle matches, the part fits.
KTM 31 models
| Model | Model years |
|---|---|
| 525 XC ATV | 2008–2012 |
| 450 XC ATV | 2008–2010 |
| 400 EXC | 2002, 2004–2007 |
| 400 XC-W | 2007 |
| 450 EXC | 2003–2007 |
| 450 EXC Factory Edition | 2005, 2007 |
| 450 EXC Six Days | 2004–2007 |
| 450 SMR | 2004–2007 |
| 450 XC | 2004, 2007 |
| 450 XC-W | 2007 |
| 525 EXC | 2003–2007 |
| 525 EXC Six Days | 2003–2007 |
| 525 XC | 2006–2007 |
| 525 XC-W | 2007 |
| 560 SMR | 2006–2007 |
| 250 EXC | 2003–2006 |
| 450 SX-F | 2003–2006 |
| 450 SXS | 2003–2006 |
| 525 SX | 2003–2006 |
| 540 SXC | 2002–2006 |
| 525 MXC | 2003–2005 |
| 525 SMR | 2004–2005 |
| 450 MXC G RACING | 2003–2004 |
| 450 SMS | 2004 |
| 250 EXC-F | 2002–2003 |
| 250 EXC Six Days | 2002–2003 |
| 400 EXC Six Days | 2002–2003 |
| 400 MXC RACING | 2002 |
| 400 SX | 2002 |
| 520 EXC Six Days | 2002 |
| 520 MXC | 2002 |

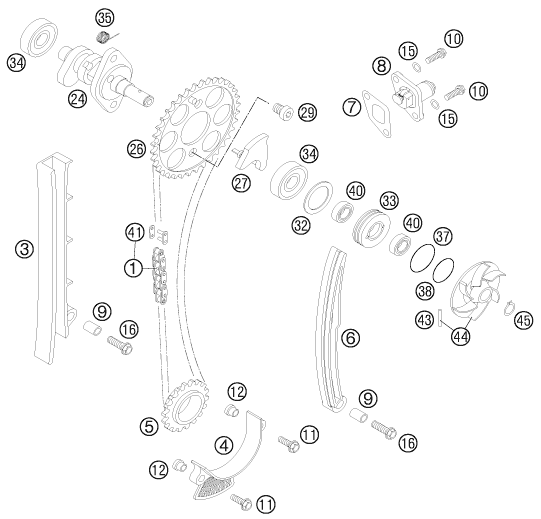

Parts diagram KTM 525 XC ATV 2012 · Timing Drive
The orange ring shows where this part sits in the diagram. The grey-ringed numbers are other parts available in our shop; click one to go to its listing.
Other parts in this diagram (10)
- Timing Chain Tensioner
59036002000Genuine part (new)€15.98 - Timing Chain Tensioner Gasket
59036003050Genuine part (new)€3.41 - Timing Chain Tensioner Complete Racing
59036003000Genuine part (new)€75.17 - Flanged Hex Bolt M6X20 TX30
0025060206Genuine part (new)€2.07 - Copper Gasket Washer DIN7603-6X10X1
0603061001Genuine part (new)€1.48 - Flanged Hex Bolt M6X25 TX30
0025060256Genuine part (new)€2.07 - Allen Head Screw DIN7984-M8X10
0984080103Genuine part (new)€2.43 - O-Ring 25,12X1,78 NBR70
0770020220Genuine part (new)€1.48 - Camshaft Chain Riveted Link
59036013050Genuine part (new)€9.33 - Needle Sleeve DIN5402 NRB 3X17,8
0402031780Genuine part (new)€1.63
Model and year information is taken from the manufacturer's spare parts catalogue. If you are not sure, ask us on WhatsApp with your frame/VIN number.
